Tubing sizes accepted0.5 to 4.8 mm bore and 1.6 mm wall
Drive IP ratingIP 31
Max Pressure (PSI)30
Max Pressure (bar)2
Power (VAC)90 to 264
Number of Rollers2
Accuracy±1% speed accuracy
Power (Hz)47 to 63 Hz
Width (in)4.375
Height (in)4.4375
Length (in)7.75
Width (cm)11
Height (cm)11.2
Length (cm)19.6
Housing MaterialABS plastic pump housing
Reversible MotorYes

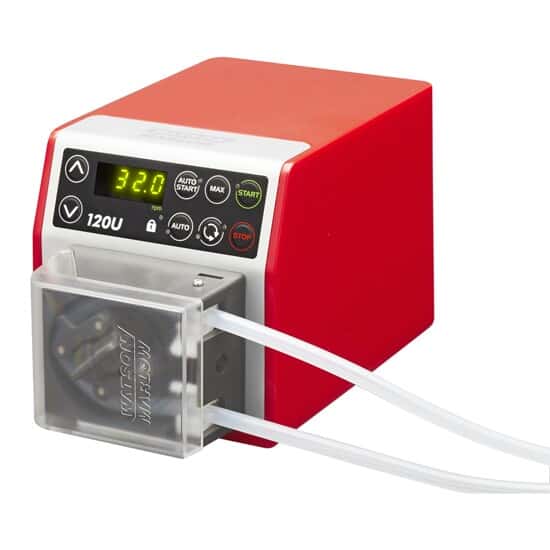

DescriptionVariable-Speed Pump System, Manual Control, 1 to 32 rpm, Single-Channel, 2-Roller; 90 to 264 VAC
Warranty3 years
Includes
Single-channel, two-roller head pump head and 24 VDC power supply with multi-country plug adapter.
Key Features
Small, stackable pumps require minimal benchtop space
Includes a single-channel pump head that delivers flow rate from 0.01 to 170 mL/min—flow rate depends on drive rpm, pump head, and tubing size
Simple operation—requires minimal key presses
Control and view speed on digital LCD
Keypad lock prevents setting accidental changes
Smooth IP31-rated housing for easy wipe down
Brushless, maintenance-free motor offers ±1% speed control accuracy with a 32:1 speed control ratio
Single-channel, two-roller pump head
3 year warranty
More About this Item
Easily maintain fluid integrity using peristaltic pumps. Only the bore of the tubing contacts the fluid, eliminating the risk of the pump contaminating the fluid or the fluid contaminating the pump. Peristaltic pumps are great for use with most liquids, including viscous, shear-sensitive, corrosive, and abrasive fluids.
Manual control drives include a single-channel pump head for flow rates up to 170 mL/min*—select from 2-roller, 4-roller, or 4-roller flip-top models. Easily adjust speed, start/stop, and direction from the keypad. Adjust speed in 1 rpm increments using the up/down arrows. Press the MAX key for rapid priming; AUTO START for automatic power recovery. Use the keypad lock feature to prevent any unwanted changes to pump settings. A smooth, IP31-rated housing encases a maintenance-free, brushless motor for quick and easy cleaning. Contact us for free technical application support on pump and tubing selection.
Operate the pump from 1 to 32 rpm in 1 rpm increment to achieve flow rates from 0.03 to 54 mL/min. The pump system includes a two-roller pump head and is only compatible with PumpSil® platinum-cured silicone tubing with 0.5 to 4.8 mm bore and 1.6 mm wall. The pump head is constructed of polycarbonate guard, MoS2 filled nylon roller assembly, IXEF rotor assembly, acetal and PVDF track, and stainless steel hardware.
*Flow rate depends on drive rpm, pump head, and tubing size.
Warning: This product is not approved or intended for, and should not be used for, medical, clinical, surgical or other patient-oriented applications.
Our specialists are here to help you find the best product or part available for your application. Call or Email us and we will make sure you get the right product or part for the job.
